CASE STUDY

Tunnel ventilation safe thanks to smart predictive maintenance

Transport Industrial IIot
Tunnel ventilation safe thanks to smart predictive maintenance

Admin : Jul 27, 2017

1 min read

Industry

Infrastructure: Intelligent Transport System (ITS)

Outcome
Smooth integration with existing SCADA System, Delivery of project under live traffic conditions and Innovative and collaborative project between SAGE and DPTI.
Capability
PLC code installed to read 32 vibration values and send 64 points of data to each vibration unit, SCADA program adapted to include additional 32 reverse direction  set points for each of the 16 jet fans, Test each set point and actual value, Simulate refresh conditions, Smooth handover of system controls
Region

South Australia, Australia

Challenge

Tunnels around the world are fitted with jet fans and sensors that clear and monitor fog and smoke. They are especially important in peak hours or during emergencies such as bushfires. These jet fans can be costly to replace when they fail, so a sound maintenance program is a must to ensure longevity.

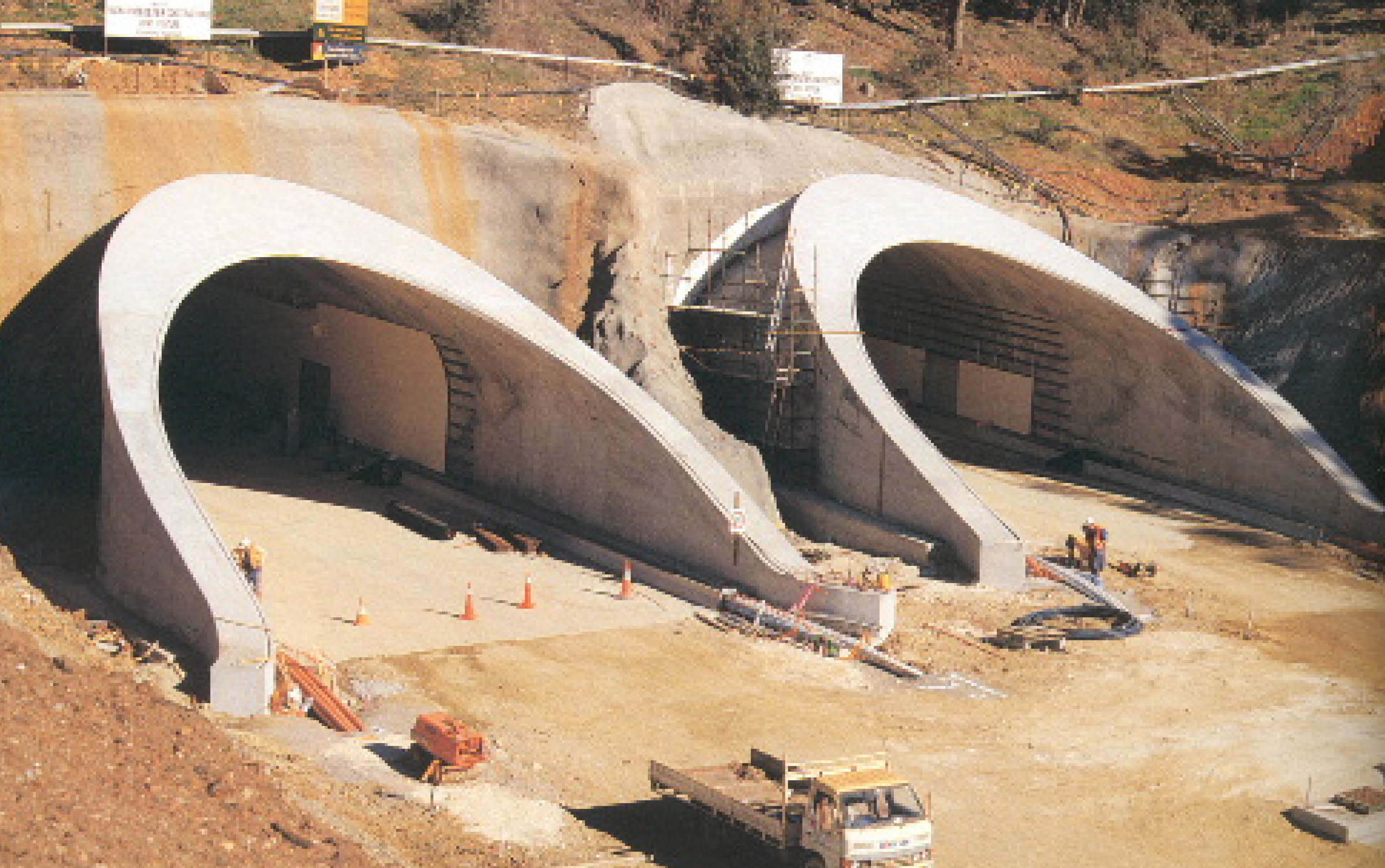

The twin Heysen Tunnels, located on the South Eastern Freeway between Adelaide and Crafers have adopted an innovative solution that leads the way in predictive maintenance.



Solution

SAGE Automation configured the SCADA and PLC components of the fan vibration monitoring system.

The system detects wear and tear before it occurs. How? Sensors installed at 12 points on each fan more accurately monitor the status of the fans and mounting brackets, via vibration trends. The system alerts users of required maintenance before damage occurs, thus increasing the life of the fans and reducing long term costs.

The vibration monitoring system is the latest innovation to be added to the tunnels. In 2000 SAGE Automation supplied and installed the control system for the Heysen tunnels.

The tunnels have 16 fan turbines and various types of sensors to monitor environmental safety and report on CO, NO, temperature and visibility levels.



Outcome

  •  PLC code installed to read 32 vibration values and
     send 64 points of data to each vibration unit.
  • SCADA program adapted to include additional 32 reverse direction
    set points for each of the 16 jet fans.
  • Test each set point and actual value
  • Simulate refresh conditions
  • Smooth handover of system controls

Technology used: SCADA, PLCs, Communication network.

Project highlights: Smooth integration with existing SCADA System, Delivery of project under live traffic conditions, Innovative and collaborative project between SAGE and DPTI.
